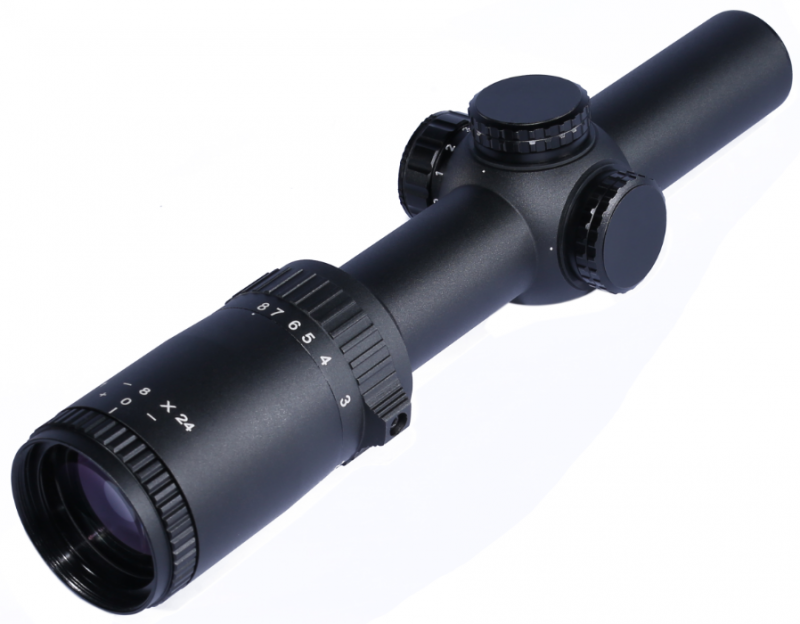

1-8X24IR Optical Scope Optical sight Tactical Scope SC015

Free

Special Notes:
1. Erector Tube must be secured with metal screws.	Yes
2. Erector Tube must have metal-to-metal contact.	Yes
3. Low Temp Epoxy may be used with Erector Tube.	Yes
4. Fogproof with Dry Nitrogen	Yes
5. Recoil: 1000 Rounds	Yes

Description

1-8X24IR Optical Scope Optical sight Tactical Scope SC015	Specification
Power	1X~8X
Objective (mm)	24
Focal Plane	Second
Tube Diameter(mm)	30
Tube Material	6061-T6
Finish (Anodized?)	Anodized
Tube/Body Color(s)
Black	[ √ ]
Silver
Reticle Type	Glass Etched Reticle
Eye Relief
‘@ LX (mm)	110
‘@HX (mm)	91
FOV
‘@LX (ft.@100yds)	104.6
‘@HX (ft.@100yds)	13.1
FOV
‘@LX (m.@100m)	34.6
‘@HX (m.@100m)	4.3
Exit Pupil
‘@ LX (mm)	16.6
‘@HX (mm)	3
Lens Coating Material
Fully Coated
Multi Coated
Fully Multi Coated	[ √ ]
Fast Focusing System:	YES
Illuminated reticle	YES
Illuminated color	RED
Battery	CR2032
Parallax Focus:	NO
Light Transmission Percentage (%)	89%
Recoil: “g’s” & # of times	1000G/100times
W/E Clicks	0.1 Mil
Clicks per Turn	60
Weight (oz/g)	494g
Waterproof:	YES
Fogproof:	YES
Shockproof:	YES
Elevation Adjustment Range (MOA)	100
Windage Adjustment Range (MOA)	100
Parallax Setting	100yds
Sunshade:	Optional
Mounts:	Optional
