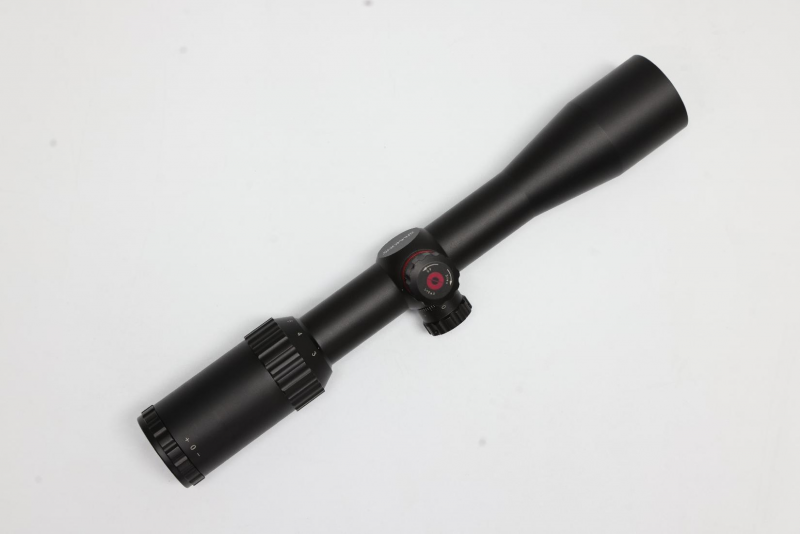

3-9X40 Optical Scope Optical sight Tactical Scope SC027

Free

Special Notes:
1. Erector Tube must be secured with metal screws.	Yes
2. Erector Tube must have metal-to-metal contact.	Yes
3. Low Temp Epoxy may be used with Erector Tube.	Yes
4. Fogproof with Dry Nitrogen	Yes
5. Recoil: 1000 Rounds	Yes

Description

3-9X40 Optical Scope Optical sight Tactical Scope SC027	Specification
Power	3X~9X
Objective (mm)	40
Focal Plane	second
Tube Diameter(mm)	30
Tube Material	6061-T6
Finish (Anodized?)	Anodized
Tube/Body Color(s)
Black	[ √ ]
Silver
Reticle Type	Metal Reticle
Eye Relief
‘@ LX (mm)	112
‘@HX (mm)	90
FOV
‘@LX (ft.@100yds)	38.1
‘@HX (ft.@100yds)	12.5
FOV
‘@LX (m.@100m)	12.6
‘@HX (m.@100m)	4.2
Exit Pupil
‘@ LX (mm)	13.2
‘@HX (mm)	4.4
Lens Coating Material
Fully Coated
Multi Coated
Fully Multi Coated	[ √ ]
Fast Focusing System:	YES
Illuminated reticle	NO
Illuminated color	/
Battery	/
Parallax Focus:	YES
Light Transmission Percentage (%)	89%
Recoil: “g’s” & # of times	1000G/100times
W/E Clicks	0.1MIL
Clicks per Turn	60
Weight (oz/g)	520g
Waterproof:	YES
Fogproof:	YES
Shockproof:	YES
Elevation Adjustment Range (MOA)	50
Windage Adjustment Range (MOA)	50
Parallax Setting	100yds
Sunshade:	Optional
Mounts:	Optional
