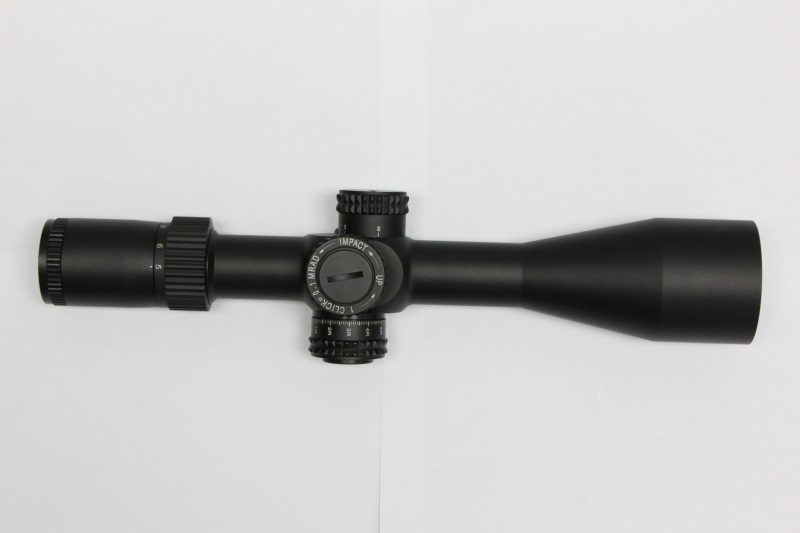

5-30X56FFP Hunting Scopes optical sight Reticle Optical Scope SC010

Free

Special Notes:
1. Erector Tube must be secured with metal screws.	Yes
2. Erector Tube must have metal-to-metal contact.	Yes
3. Low Temp Epoxy may be used with Erector Tube.	Yes
4. Fogproof with Dry Nitrogen	Yes
5. Recoil: 1000 Rounds	Yes

Category: FFP Scope

Description

5-30X56FFP Hunting Scopes optical sight Reticle Optical Scope SC010	Specification
Power	5X~30X
Objective (mm)	56
Focal Plane	first
Tube Diameter(mm)	34
Tube Material	6061-T6
Finish (Anodized?)	Anodized
Tube/Body Color(s)
Black	[ √ ]
Silver
Reticle Type	Glass Etched Reticle
Eye Relief
‘@ LX (mm)	114
‘@HX (mm)	88
FOV
‘@LX (ft.@100yds)	23.5
‘@HX (ft.@100yds)	3.8
FOV
‘@LX (m.@100m)	7.8
‘@HX (m.@100m)	1.3
Exit Pupil
‘@ LX (mm)	11.2
‘@HX (mm)	1.86
Lens Coating Material
Fully Coated
Multi Coated
Fully Multi Coated	[ √ ]
Fast Focusing System:	YES
Illuminated reticle	NO
Illuminated color
Battery	CR2032
Parallax Focus:	YES
Light Transmission Percentage (%)	89%
Recoil: “g’s” & # of times	1000G/100times
W/E Clicks	0.1MIL
Clicks per Turn	120
Weight (oz/g)
Waterproof:	YES
Fogproof:	YES
Shockproof:	YES
Elevation Adjustment Range (MOA)	90
Windage Adjustment Range (MOA)	50
Parallax Setting	10m-infinity
Sunshade:	Optional
Mounts:	Optional
